Adding insulation to an existing roof involves either layering material onto the attic floor or attaching it directly to the underside of the roof deck. This process significantly improves thermal resistance, reduces energy consumption, and enhances indoor comfort by preventing heat transfer through the building envelope. Depending on the roof structure and accessibility, homeowners can choose between blown-in loose-fill, fiberglass batts, or spray foam applications to achieve recommended R-values.
Understanding the Importance of Roof Insulation
Proper insulation acts as a thermal barrier that keeps heat inside during winter and outside during summer. For many older homes, the existing insulation may have settled over time or was never installed to modern standards. Upgrading this barrier is one of the most cost-effective ways to lower utility bills and extend the lifespan of heating and cooling systems. According to the Department of Energy, a well-insulated attic can save homeowners an average of 15% on heating and cooling costs by sealing air leaks and adding sufficient thermal resistance [1].
Beyond financial savings, adding insulation helps prevent common structural issues such as ice dams. In cold climates, heat escaping through an under-insulated roof can melt snow, which then refreezes at the eaves, potentially causing water to back up under shingles. By maintaining a consistent roof temperature, adequate insulation protects the integrity of the roofing materials and the underlying structure. This thermal consistency also reduces the expansion and contraction of roof members, which can lead to premature wear and structural fatigue over several decades of seasonal changes.
Furthermore, a well-insulated roof contributes to a quieter home environment. High-density insulation materials, such as mineral wool or cellulose, provide excellent sound dampening properties. This is particularly beneficial for homes located near busy roads or in areas prone to heavy rain and hail. By absorbing acoustic energy, the insulation creates a more peaceful interior atmosphere while simultaneously performing its primary role of thermal regulation.
Assessing Your Current Insulation Levels
Before adding new material, it is essential to evaluate the type and depth of the insulation already in place. Most attics use either fiberglass batts, which look like large blankets, or loose-fill material such as cellulose or mineral wool. To determine if more is needed, measure the thickness of the current layer with a ruler. If the insulation is level with or below the floor joists, adding more will likely provide a significant benefit. Most modern building codes suggest a much higher level of insulation than was required even twenty years ago, meaning almost any older home can benefit from an upgrade.
It is also important to inspect the condition of the existing material. Insulation that is damp, moldy, or compressed should be replaced rather than covered. Dampness often indicates a roof leak or a ventilation issue that must be addressed before new material is installed. Furthermore, air sealing is a critical prerequisite; using caulk or expanding foam to seal gaps around pipes, chimneys, and light fixtures prevents conditioned air from bypassing the new insulation entirely. Without proper air sealing, even the thickest layer of insulation will fail to reach its full performance potential because convective heat loss will continue through the gaps.
Homeowners should also look for signs of pest infestation, such as droppings or nesting materials, within the old insulation. If pests have compromised the material, it is often necessary to remove the contaminated insulation and sanitize the area before proceeding. Ensuring a clean and stable base for the new insulation is vital for long-term effectiveness and maintaining healthy indoor air quality throughout the residence.
Common Methods for Adding Insulation
There are three primary strategies for enhancing the thermal performance of an existing roof. The most common method for vented attics is adding insulation to the attic floor. This keeps the living space conditioned while allowing the attic itself to remain at a temperature closer to the outdoors. This approach is generally the most affordable and easiest to implement, as it does not require complex modifications to the roof structure itself. It relies on the principle of separating the conditioned living space from the unconditioned attic volume.

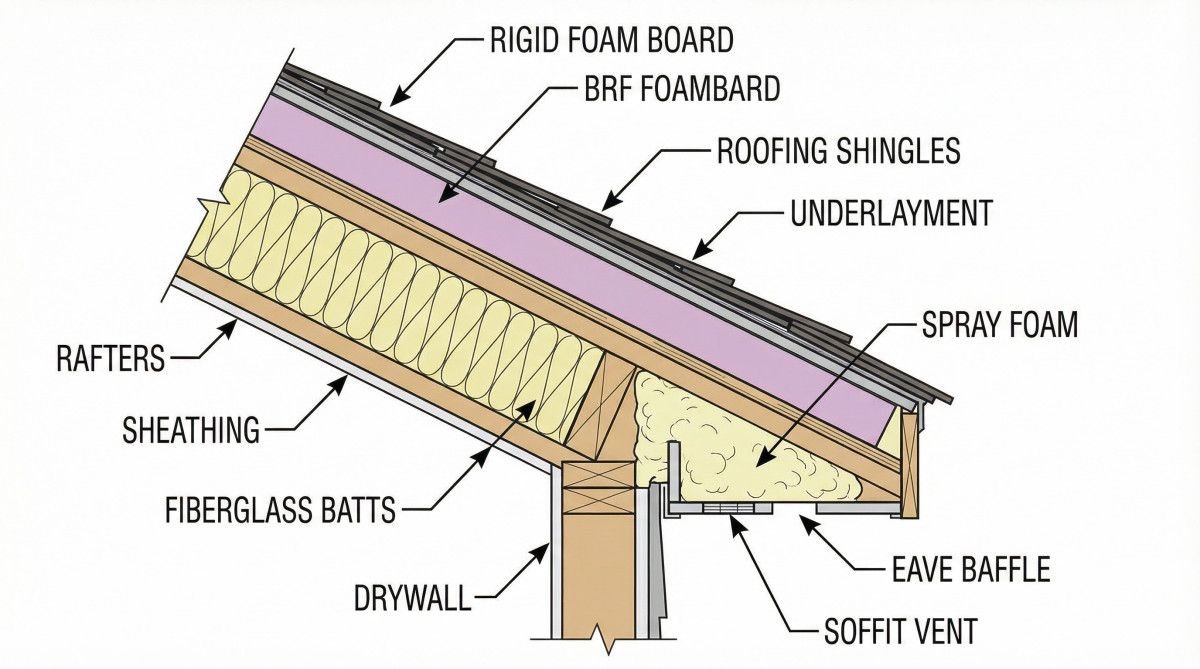

For homes with vaulted ceilings or those wishing to create a conditioned attic for storage or living space, insulating the roof deck from the underside is the preferred approach. This method involves applying insulation directly between the rafters. It effectively brings the attic space inside the thermal envelope of the home, which can be advantageous for housing HVAC equipment or ductwork that would otherwise lose efficiency in a hot or cold attic. However, this method requires careful attention to moisture management and ventilation to prevent condensation on the underside of the roof sheathing.
A third, more intensive method involves adding rigid foam insulation to the exterior of the roof deck. This is typically performed during a full roof replacement. Rigid polyisocyanurate or polystyrene boards are laid over the existing sheathing, followed by a new layer of plywood and the final roofing material. This creates a continuous thermal bridge-free layer that is highly effective but requires professional installation and a significant budget. This method is often referred to as a “hot roof” configuration and is highly regarded in high-performance building circles for its ability to eliminate thermal bridging through the wooden rafters.
Comparing Insulation Materials and Applications
Choosing the right material depends on the accessibility of the space and the desired R-value. Fiberglass batts are a popular DIY choice because they are easy to handle and relatively inexpensive. However, they can leave gaps if not cut precisely around obstacles such as wiring, bracing, and plumbing stacks. Blown-in cellulose or fiberglass is often superior for existing spaces because it can be distributed into tight corners and over irregular surfaces, creating a more uniform thermal blanket that effectively eliminates small air pockets.
| Material Type | Best Application | Primary Advantage | Installation Difficulty |
|---|---|---|---|
| Fiberglass Batts | Open attic floors | Low cost and DIY friendly | Moderate |
| Blown-in Cellulose | Irregular spaces | High R-value and gap filling | Professional/Rental |
| Spray Foam | Roof deck underside | Excellent air sealing | Professional |
| Rigid Foam Board | Exterior roof deck | Continuous thermal barrier | High |
| Mineral Wool | Fire-prone areas | Superior fire resistance | Moderate |
Mineral wool is another excellent option, particularly for homeowners concerned about fire safety and soundproofing. It has a higher melting point than fiberglass and is more resistant to moisture. While it is more expensive and heavier than fiberglass, its durability and performance in extreme conditions make it a worthwhile investment for many. When selecting a material, it is also important to consider the environmental impact; cellulose, for example, is often made from recycled paper products and requires less energy to manufacture than mineral-based alternatives.
Step-by-Step Guide to Adding Attic Floor Insulation

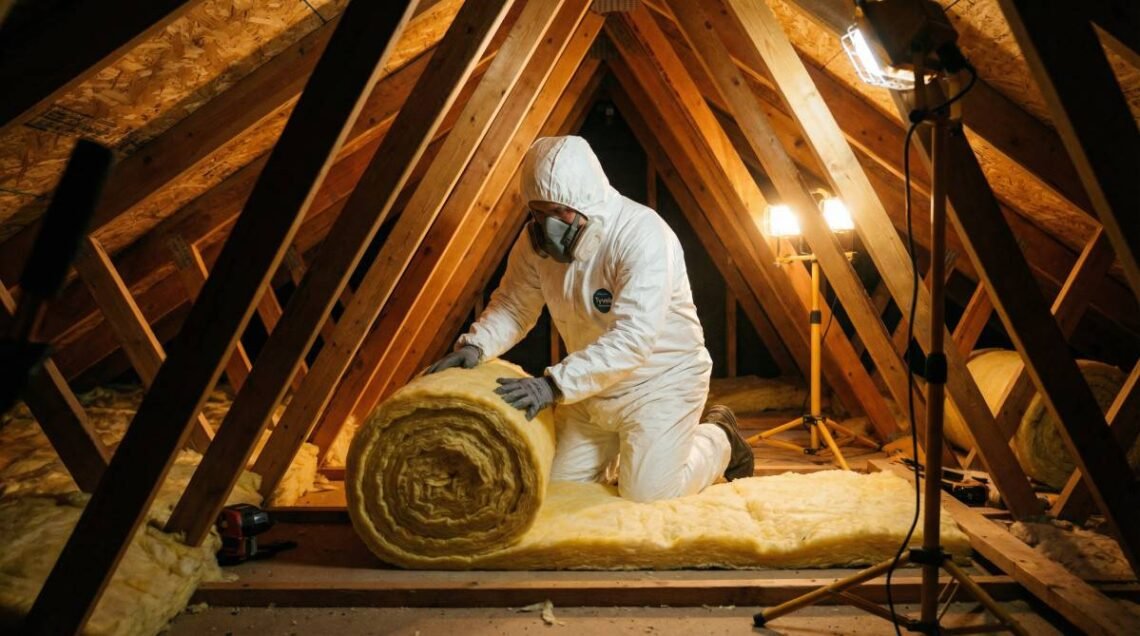

To begin the installation, ensure you have the necessary safety gear, including a high-quality respirator, gloves, and long sleeves to protect against skin irritation from fibers. Start by sealing all air leaks in the attic floor. This includes using fire-rated caulk around flues and expanding foam for smaller gaps around wiring and plumbing penetrations. Pay close attention to the tops of interior walls and where the ceiling meets the exterior walls, as these are common areas for significant air leakage. Once sealed, install baffles at the eaves to ensure that the new insulation does not block the soffit vents, which are crucial for maintaining proper airflow and preventing moisture buildup in the attic space.
If using batts, lay them perpendicular to the existing joists to cover any gaps in the first layer. This cross-layering technique helps to break up thermal bridges created by the wooden joists. If using blown-in insulation, use a rental machine to distribute the material evenly across the space until the desired depth is reached. It is helpful to have one person in the attic directing the hose while another feeds the machine on the ground. For most regions, aim for a total R-value between R-38 and R-60, which typically equates to a thickness of 12 to 20 inches depending on the material used [2].
After the insulation is installed, it is important to verify that the attic hatch or pull-down stairs are also insulated and weather-stripped. An uninsulated attic access point can act like an open window, allowing significant amounts of heat to escape. Specialized insulated covers are available for this purpose, or you can attach rigid foam boards to the back of the hatch itself. Finally, ensure that any recessed lighting fixtures are “IC-rated” (Insulation Contact) before covering them with insulation; otherwise, they must be protected with a fire-rated cover to prevent overheating.
Insulating Vaulted Ceilings and Unvented Roofs
Vaulted or cathedral ceilings present a unique challenge because there is no attic floor to insulate. In these cases, the insulation must be placed between the rafters. If the roof is vented, a small air gap of at least two inches must be maintained between the top of the insulation and the roof sheathing to allow moisture to escape through the ridge vent. Rigid foam or specialized baffles can be used to maintain this channel while providing space for fiberglass or mineral wool batts. This configuration requires precise installation to ensure the ventilation channel remains unobstructed from the soffit to the ridge.
Alternatively, an unvented roof design uses spray foam applied directly to the underside of the roof deck. This method eliminates the need for ventilation by creating an airtight seal that prevents moisture-laden indoor air from reaching the cold roof surface where it could condense. Closed-cell spray foam is particularly effective for this application as it provides a high R-value per inch and acts as its own vapor retarder, though it requires professional equipment and expertise to apply safely. This approach is often the best solution for complex roof shapes where traditional ventilation is difficult to achieve.
When opting for an unvented roof, it is critical to ensure the entire roof assembly is airtight. Any small leaks can allow moisture to accumulate behind the insulation, potentially leading to rot that is difficult to detect from the interior. Professional installers often use a blower door test to verify the integrity of the air seal. While more expensive than traditional methods, the unvented roof approach offers superior thermal performance and can significantly increase the usable volume of the home by making the attic space comfortable year-round.
Long-Term Maintenance and Performance Monitoring
Once the new insulation is in place, periodic inspections are recommended to ensure it remains effective. Check the attic after heavy storms or high winds to ensure that the insulation has not shifted and that the eave baffles are still in place. If you notice any signs of moisture, such as staining on the rafters or a musty odor, investigate the source immediately. Early detection of roof leaks or ventilation issues can prevent costly repairs and ensure that your insulation investment continues to provide value for the life of the home.
It is also worth monitoring your energy bills to quantify the impact of the upgrade. Most homeowners see a noticeable decrease in their monthly costs within the first few heating or cooling cycles. If the savings are not as significant as expected, it may indicate that other areas of the home, such as windows or doors, require further attention. Insulation is a critical component of a holistic approach to home energy efficiency, and its performance is most effective when combined with other weatherization measures.
How much insulation do I need for my roof?
The amount of insulation required depends on your local climate zone. The Department of Energy recommends R-38 to R-60 for most attics in the United States. You can determine the current R-value by multiplying the inches of existing insulation by its R-value per inch (typically 2.5 for fiberglass and 3.5 for cellulose).
Can I add new insulation over old insulation?
Yes, you can add new insulation over existing material as long as the old insulation is dry and free of mold. If the existing insulation is compressed or water-damaged, it should be removed before installing the new layer to ensure maximum effectiveness and prevent structural issues.
Do I need a vapor barrier when adding insulation?
In most cases, you should not add a second vapor barrier over existing insulation, as this can trap moisture between the layers and lead to rot. If you are installing new insulation in an uninsulated space, a vapor retarder should be placed on the “warm-in-winter” side of the assembly.
Is spray foam better than fiberglass for roofs?
Spray foam offers superior air sealing and a higher R-value per inch, making it ideal for tight spaces or unvented roof designs. However, fiberglass is significantly more affordable and easier for homeowners to install themselves on open attic floors.
How do I prevent ice dams when insulating?
To prevent ice dams, you must combine high R-value insulation with thorough air sealing and proper ventilation. Ensuring that heat does not escape into the attic and that the roof deck remains cold prevents the snow-melt cycle that causes damming at the eaves.
Should I hire a professional or do it myself?
Adding fiberglass batts or renting a blower for cellulose is a manageable DIY project for many homeowners. However, applications involving spray foam, exterior roof insulation, or complex air sealing in cramped spaces are best left to professionals to ensure safety and code compliance.
